Z-turn Board V2 (with an AMD Zynq 7010)

發布者: MYIR Tech Limited

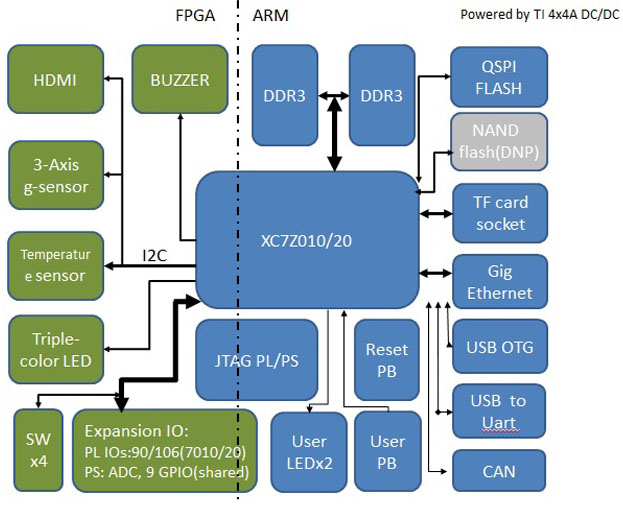

The Z-turn Board V2 is a low-cost linux-ready Single Board Computer built around the AMD Zynq 7010 or Zynq 7020 System-on-Chip (SoC) with a dual-core ARM Cortex-A9 processor and FPGA. It has 1GB DDR3 SDRAM and 16MB SPI Flash on board and integrates a set of rich peripherals including UART, USB OTG, Gigabit Ethernet, CAN, HDMI, TF, G-sensor and Temperature sensor. On the rear of the board, there are two 1.27mm pitch 80-pin SMT female connectors to allow the availability of 96 user I/O and configurable as up to 39 LVDS pairs I/O.


主要特性與優勢

  • 667MHz AMD XC7Z010/020 Dual-core ARM Cortex-A9 Processor with AMD 7 series FPGA logic
  • 1GB DDR3 SDRAM (2 x 512MB, 32-bit), 16MB QSPI Flash
  • USB_UART, USB2.0 OTG, 1 x 10/100/1000Mbps Ethernet, CAN, HDMI, TF, …
  • Onboard Three-axis Acceleration Sensor and Temperature Sensor
  • Ready-to-Run Linux Single Board Computer
  • Supports Python Development

包裝內容物含配件

  • One 16GB TF card
  • One Z-turn Board V2 (for Zynq-7010)
